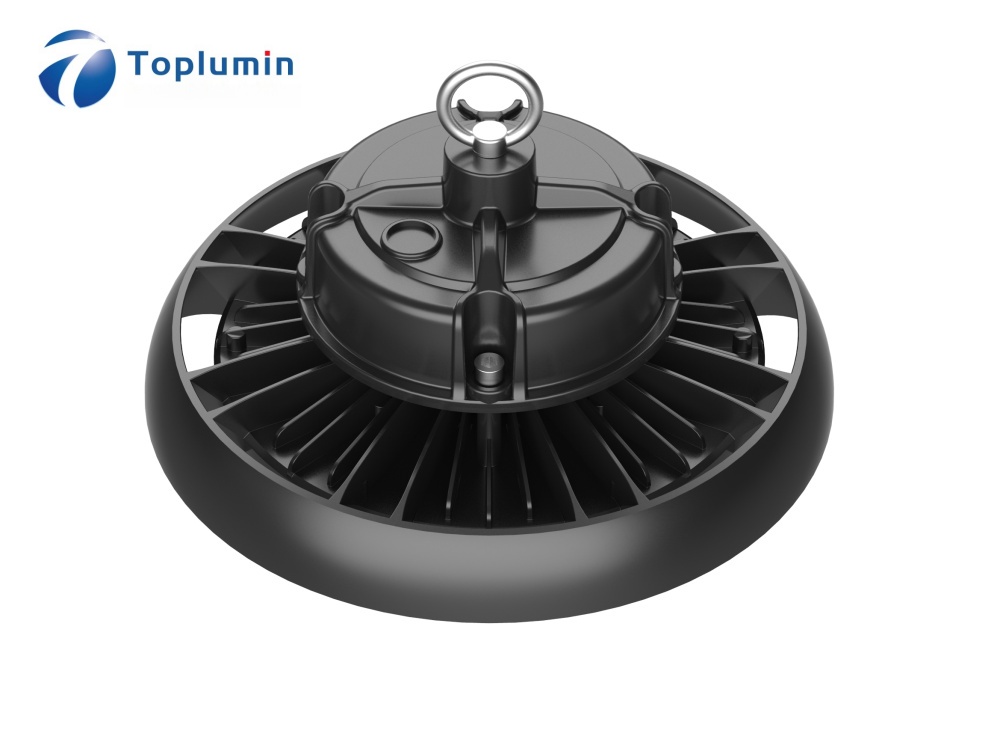

UFO LED High Bay Light- ECOBright

Short Description:

Die casting ADC12 aluminum alloy housing with powder coated finish, high thermal conductivity to take heat away from LEDs efficiently. Prolonged lifespan of the LED high bay fixture thanks to lowered junction temperature(Tj) of LEDs.

• Driven by famous brand LED driver with multiple protections with high efficiency.

Adopt premium quality LEDs with CRI>80 and SDCM≤4 to delivery visually comfortable light with high uniformity on objects and ground in industrial buildings.

High light transmittance PC lens of different beam angles for request of different light coverage and illuminance.

Optional PC or aluminum reflector for glare-free lighting effect.


Product Detail

More Options

¬ Technical Data

ν Optoelectronic
Model No.   TL-UHB-EB-100  TL-UHB-EB-150  TL-UHB-EB-200  TL-UHB-EB-240
Rated Power 100W 150W 200W  240W
System Efficacy(±5%)  Standard  150lm/W
Pro 170lm/W
Extra 190lm/W
Luminous Flux(±5) Standard  15,000lm 22,500lm 30,000lm 36,000lm
Pro 17,000lm 25,500lm 34,000lm 40,800lm
Extra 19,000lm 28,500lm 38,000lm  45,600lm
Adjustable Power   100W-80W-60W 150W-120W-100W 200W-180W-150W 240W-200W-150W
Tunable  CCT
4000K-5000K-5700K
Color Rendering Index Ra>80 / Ra>90(optional)
Beam Angle 60°/90°/110°
ν Electrical
Input Voltage    AC100~277V
Frequency 50/60Hz
Power Factor  ≥0.95
THD <15%
Surge Protection(Built-in) 3kV / 4kV
Driver Brand Meanwell/Sosen
Dimmable(Opt.) 0-10V / DALI
Motion Sensor(Opt.) PIR / Microwave
ν Mechanical
Housing Material   Die-cast aluminum  ADC12
Surface Finish Powder coated
Lens Material Polycarbonate(PC)
Fixture Size(mm)
236*101
286*106
336*115
ν Environmental
Ingress Protection


 IP65
Impact Protection IK08
Ambient Temperature -35℃ ~ 50℃
Storage Temperature -45℃ ~ 60℃
Operating Humidity 85% max.
Storage Humidity 85% max.
Lifespan(L70B10@25℃) 50,000h



¬ Dimensions

cheap UFO led high bay dimensional drawing
cheap UFO led high bay dimensions

¬ Light Distribution Curve

economy UFO LED high bay light distribution curve

¬ Installation

economic UFO LED high bay installation methods drawing

¬ Accessories

— Standard

UFO LED high bay metal ring

Hanging ring

Or

UFO LED high bay hanging hooks

          Hanging hook

+

UFO led high bay steel safety rope

Security rope

— Optional

U surface mount bracket for UFO led high bay
UFO led high bay suspending pipe
cheap UFO led high bay with reflector
UFO led high bay with emergency pack

Surface mount bracket

Hanging pipe: 3/4 nut with M10

        Aluminum reflector

Emergency Pack


  • Previous:
  • Next:

  • # Optional Feature Value or Description
    1 Custom Power 400W / 600W / 800W / 1200W / 1800W
    2 Higher Voltage 347V / 480V
    3 Dimmability 0-10V / DMX / DALI-2
    4 Sensors or Control Daylight Sensor, Remote Control
    5 Lamp Shield Anti-glare
    6 Laser Touch Light Positioning
