Fully Adjustable LED Sports Lighting Fixture- BEAMStar
¬ Technical Data
| Model No. | TL-SL-BS1-500 | TL-SL-BS2-1000 | TL-SL-BS3-1500 | TL-SL-BS3-2000 |
| Optoelectronic | ||||
| Rated Power | 500W | 1000W | 1500W | 2000W |
| Luminous Efficacy(±5%) | 150lm/W | |||
| Luminous Flux(±5%) |
75,000lm | 150,000lm | 225,000lm | 300,000lm |
| Color Temperature(CCT) | 4000K / 5000K / 5700K / 6500K | |||
| Color Rendering Index(Ra) | ≥80 | |||
| Beam Angle | 15°/24°/30°/45°/60°/90°/90×25°/90×45°/110×35°/140×50° | |||
| Electrical | ||||
| Input Voltage | AC 100-277V/95-305V | |||
| Input Frequency | 50/60Hz | |||
| Power Factor | ≥0.95 | |||
| THD | <15% | |||
| Surge Protection | 20Kv | |||
| Dimmability(Optional) | 0-10V / DALI / DMX | |||
| Mechanical | ||||
| Product Size | 739×431×335mm |
862×523×642mm |
862×625×924mm | |

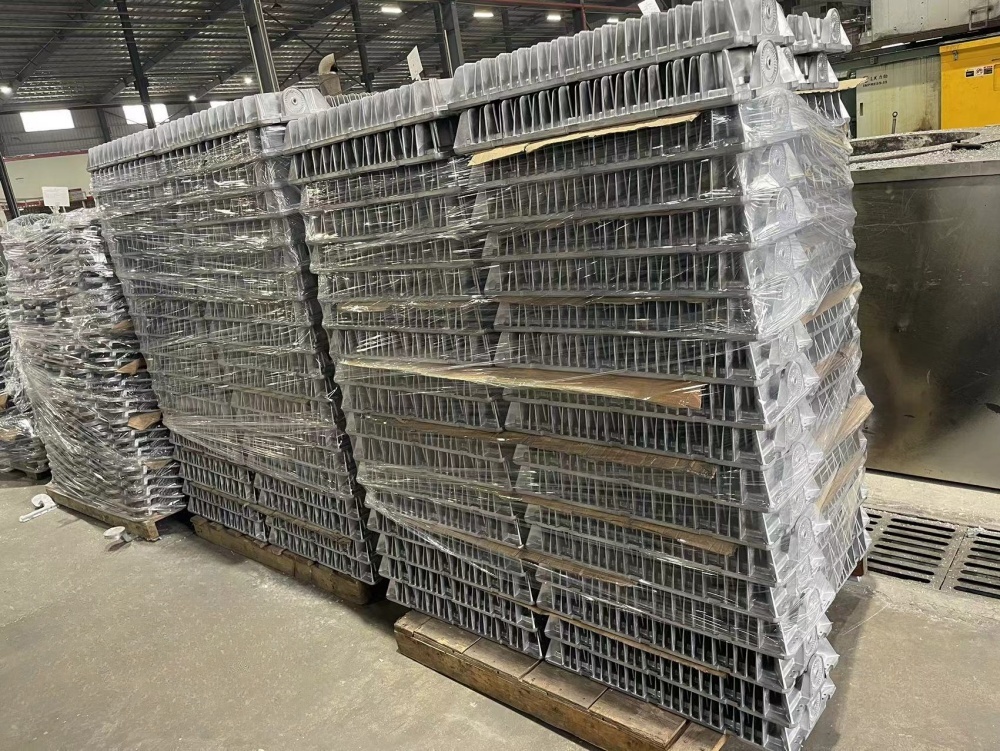

| Housing Material | Aluminum Alloy ADC12 | |||
| Surface Finish | Powder Coated | |||
| Lens Material | Polycarbonate(PC) | |||
| Environmental | ||||
| Ingress Protection | IP66 |
|||
| Impact Protection | IK08 | |||
| Ambient Temperature | -40 ~ +50℃ | |||
| Storage Temperature | -50 ~ +70℃ | |||
| Lifespan(L90B10@25℃) | 50,000h | |||
¬ Light Distribution Curve
¬ Dimensions
¬ Installation
¬ Details View
| # | Optional Feature | Value or Description |
| 1 | Custom Power | 400W / 600W / 800W / 1200W / 1800W |
| 2 | Higher Voltage | 347V / 480V |
| 3 | Dimmability | 0-10V / DMX / DALI-2 |
| 4 | Sensors or Control | Daylight Sensor, Remote Control |
| 5 | Lamp Shield | Anti-glare |
| 6 | Laser Touch | Light Positioning |
