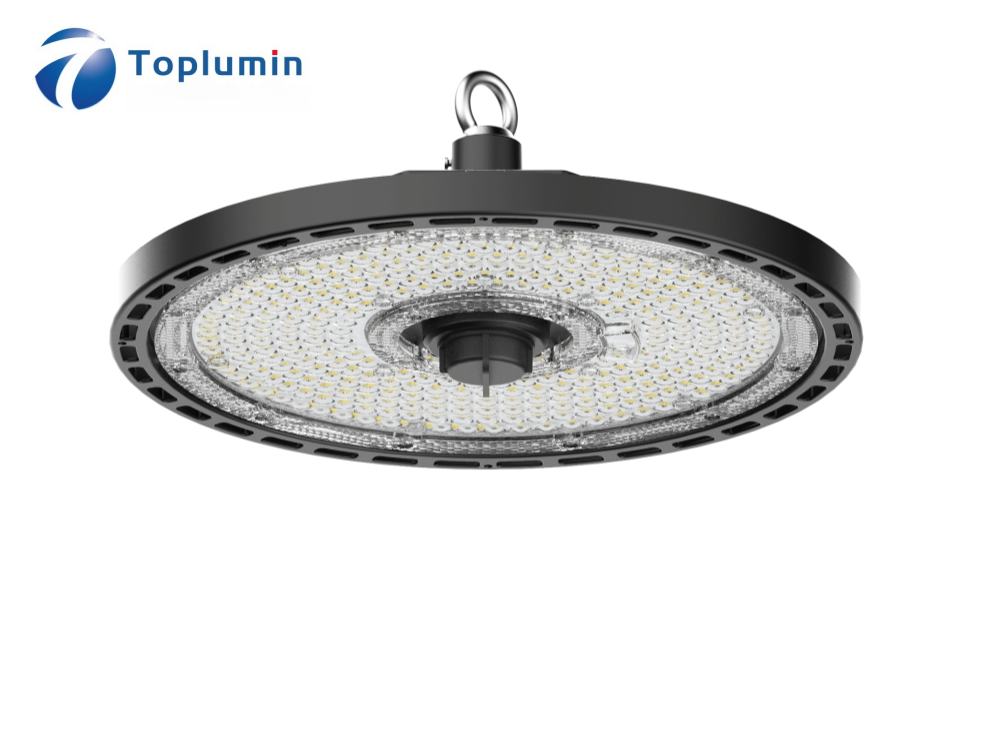

UFO LED High Bay Low Glare- EYELike

Short Description:

Low glare UFO LED high bay fixture with UGR<16(60º beam angle), providing visually comfortable light by professional anti-glare lens design. Low dazzling light helps improve workers’ efficiency and health.

Zhaga socket, suitable for various of 12V plug-and-play sensors, allowing simple and flexible interchangeability.

Sensor with integrated Bluetooth function is available for convenient App control, grouping, group linkage, dimming and timer.

Light weight yet efficient in heat dissipation thanks to optimized fins design and high thermal conductivity powder coating.

Up to 200lm/W for maximum energy savings.


Product Detail

More Options

high efficiency UFO LED high bay
low glare UFO LED high bay light
Zhaga socket sensor UFO LED high bay light

Up to 200lm/W

Low Glare UGR<16

zhaga UFO LED high baySocketed Sensor

                  UFO LED high bay with bluetooth control

¬ Technical Data

ν Optoelectronic
Model No.    TL-UHB-EL-60  TL-UHB-EL-100 TL-UHB-EL-150  TL-UHB-EL-200
Rated Power 60W 100W 150W 200W
System Efficacy Standard 155lm/W
Pro 180lmW
Extra 200lm/W
Luminous Flux(@5000K) Standard  9,300lm  15,500lm 23,250lm 31,000lm
Pro  10,800lm  18,000lm  27,000lm  36,000lm
Extra  12,000lm  20,000lm  30,000lm  40,000lm
Color Temperature(CCT)    3000K / 4000K / 5000K / 5700K / 6500K
Color Rendering Index Ra>80
Beam Angle
Normal 60º / 90º / 120º   60º / 90º
Anti-glare  60°(UGR<16) / 90°(UGR<22)
Smart Control
60º / 90º / 120º
ν Electrical
Input Voltage    AC200~240V/100~277V
Frequency 47~63Hz
Power Factor ≥0.95
THD <15%
Surge Protection(Built-in) 3kV / 4kV
Driver Brand Sosen/Moso
Dimmable(Opt.) 0/1-10V / DALI
Sensing Function(Opt.) PIR / Microwave / Daylight
ν Mechanical
Housing Material  Die-cast aluminum  ADC12
Surface Finish Powder coated
Lens Material Polycarbonate(PC)
Fixture Size(mm)
Ø220*78
 Ø265*86
Ø300*86
Ø330*86
Luminaire Net Weight(Kg)
1.2
1.9
2.3
2.8
Quantity/CTN.(pcs)
2
Export Carton Size(mm)
28*27*30
33*28*35
37*28*39
40*28*42
Gross Weight/CTN.(Kg) 3.3 4.8 5.8 6.8
ν Environmental
Ingress Protection


 IP66
Impact Protection IK08
Ambient Temperature -40℃ ~ 50℃
Storage Temperature -50℃ ~ 70℃
Operating Humidity 85% max.
Storage Humidity 90% max.
Lifespan(L70B10@25℃) 50,000h



¬ Dimensions

low-glare-UFO-led-high-bay-dimensional-drawing

¬ Beam Angle

UFO led high bay beam angles

¬ Installation

zhaga sensor UFO LED high bay installation methods drawing

¬ Accessories

— Standard

UFO LED high bay metal ring

Hanging ring

Or

UFO LED high bay hanging hook

          Hanging hook

+

UFO led high bay steel safety rope

Security rope(0.5m)

— Optional

Low UGR led high bay accessories

            Aluminum reflector                           Diffused PC reflector

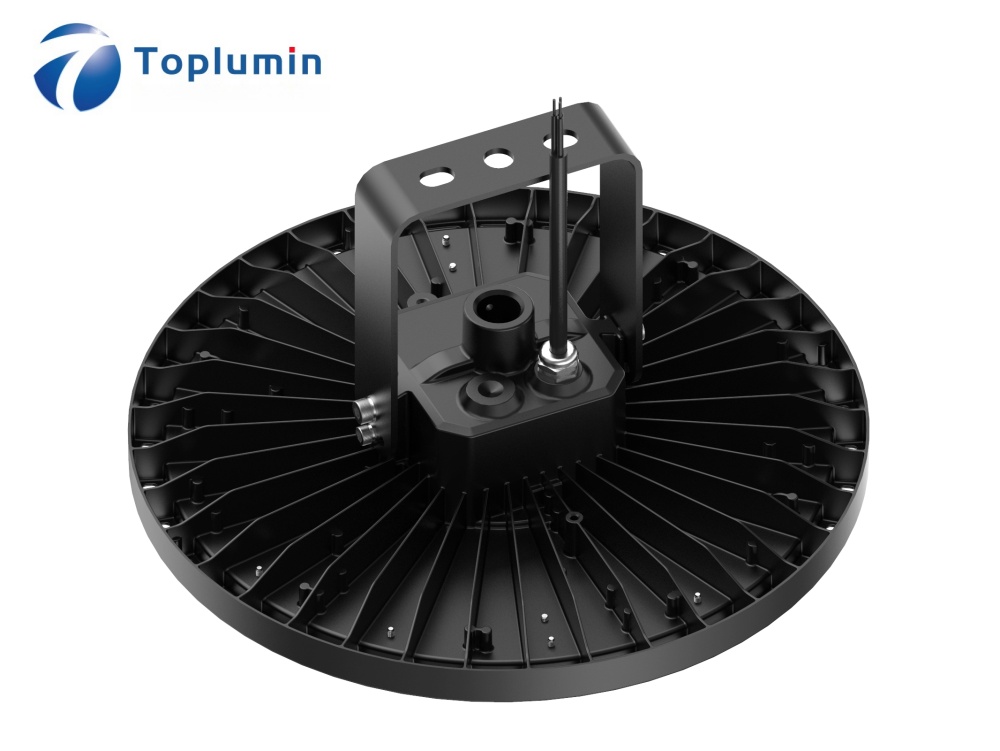

UFO led high bay U bracket

Mounting bracket(+/-45º)

zhaga socket for UFO led high bay
UFO led high bay microwave sensor with remote control
UFO led high bay with PIR sensor and remote controller
UFO LED high bay with day light sensor and remote controller

zhaga UFO LED high bayZhaga socket

Microwave sensor + Remote controller

PIR sensor + Remote controller

Daylight sensor + Remote controller

UFO LED high bay microwave sensor with Bluetooth control

Microwave sensor + Bluetooth APP control

UFO LED high bay PIR sensor with Bluetooth control

PIR sensor + Bluetooth APP control


  • Previous:
  • Next:

  • # Optional Feature Value or Description
    1 Custom Power 400W / 600W / 800W / 1200W / 1800W
    2 Higher Voltage 347V / 480V
    3 Dimmability 0-10V / DMX / DALI-2
    4 Sensors or Control Daylight Sensor, Remote Control
    5 Lamp Shield Anti-glare
    6 Laser Touch Light Positioning
