LED Tri-proof Light Aluminum Housing- SLIVERTect

Short Description:

6063 aluminum alloy housing is efficient in heat dissipation and deform-resistant. 94 V-0 grade polycarbonate cover which is flame retardant, heat and impact resistant.

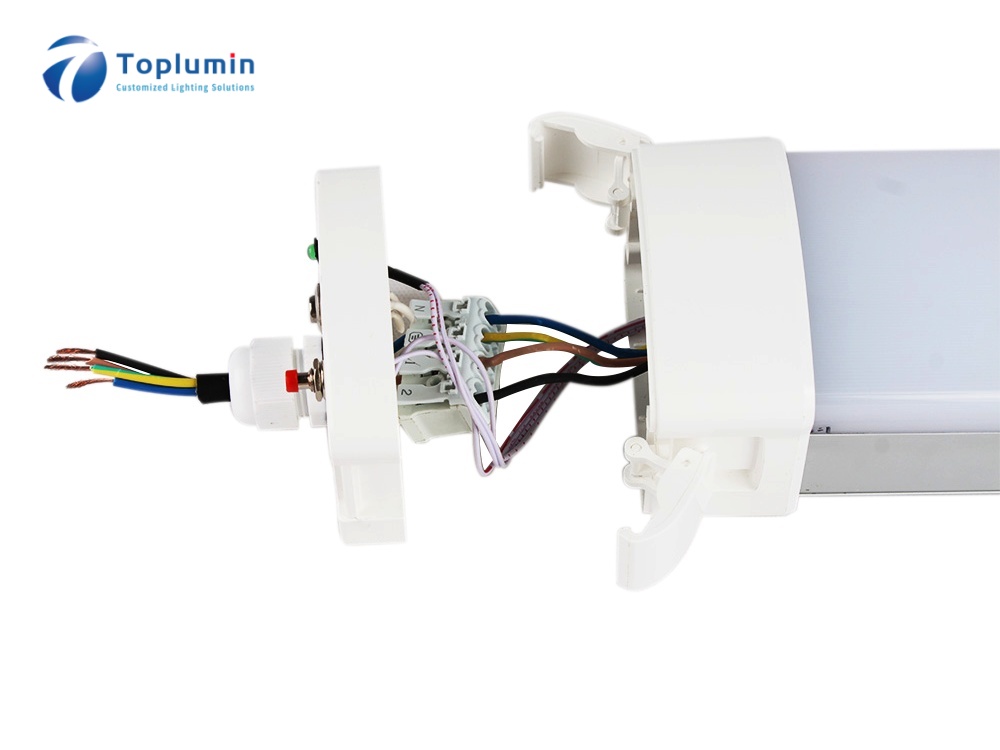

Linkable, tool-free access for quick wiring with WAGO connectors, allowing flexible arrangement of LED fixtures based on the lighting design requirements for lux level of different areas. Flicker-free visually comfortable soft light.

IP66 waterproof and IK10 impact resistant, suit for wet, dusty and vibration locations. Breather valve is optional to avoid condensation in low temperature applications.

Microwave sensor and DALI driver are available for smart lighting control, and additional energy savings.

 CCT tunable, power adjustable, and emergency lighting functions are optional.


Product Detail

Downloads

¬ Technical Data

Model No. TL-3F-ST2-20   TL-3F-ST2-30 TL-3F-ST4-40  TL-3F-ST4-50  TL-3F-ST5-50   TL-3F-ST5-60
Optoelectronic
Rated Power                   20W 30W 40W 50W 50W 60W
System Efficacy(±5%) Standard 130lm/W
Pro 150lm/W
Luminous Flux(±5%)

2,600lm
3,900lm 5,200lm  6,500lm  6,500lm 7,800lm
3,000lm
4,500lm  6,000lm  7,500lm  7,500lm 9,000lm
Color Temperature(CCT) 3000K / 4000K / 5000K / 6000K
Color Rendering Index Ra>80
Beam Angle 120°
 Electrical
Input Voltage AC200~240V/100~277V
Frequency 50/60Hz
Power Factor  ≥0.95
THD <15%
Dimmable(Opt.) 0-10V / DALI
Sensor Type(Opt.) PIR / Microwave
Emergency Lighting Time(Opt.) 1.5h / 3h
 Mechanical
Housing Material     Extruded aluminum 6063-T5
Surface Finish Anodized
Cover Material PC(94V-0)
Fixture Size(L*W*Hmm) 600*94*69
1200*94*69
1500*94*69
Net Weight(Kg)
Qty./Carton(pcs)
Carton Size(cm)
• Environmental
Ingress Protection     IP66
Impact Protection IK10
Ambient Temperature -20℃ ~ 40℃
Storage Temperature -30℃ ~ 50℃
Lifespan(L90B10@25℃) 50,000h



¬ Dimensional Drawing

aluminum housing LED tri-proof lamp dimensions

¬ Light Distribution

LED tri-proof lamp light distribution

¬ Installation Methods

1. Surface Mount

aluminum housing LED tri-proof light ceiling mount installation
LED tri-proof lamp mouting clip

Mounting Clips(Standard)

LED tri-proof light adjustable buckle

Adjustable Clips(Optional)

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

2. Suspending

aluminum housing LED tri-proof light suspending installation
IP69K LED tri-proof light suspending wire

Suspending Wires(Optional)
