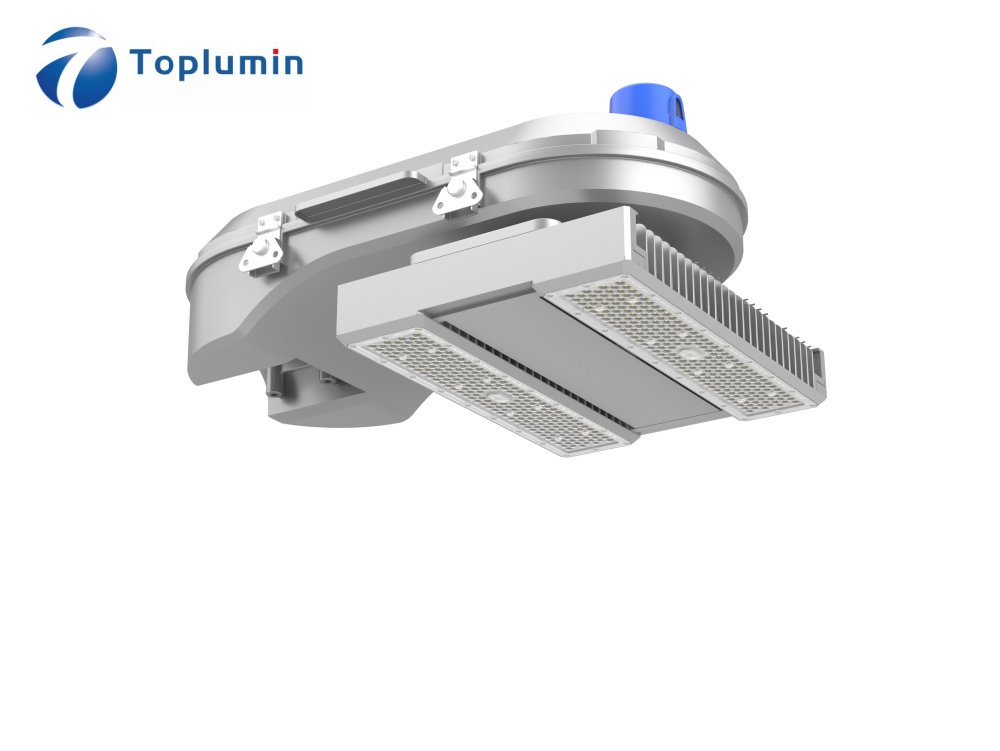

LED High Mast Light 360° Rotatable- HARBOURView

Short Description:

The LED high mast fixture is 360° rotatable, flexible to adjust the light coverage as needed.

Die-cast IP65 driver box with buckle design, tool-free access for easy wiring and maintenance.

NEMA socket, compatible with daylight photocell sensor and controller for smart control and more energy savings.

 Copper breathing valve, balancing the internal and external air pressure to avoid condensation even during extreme temperature shift.

Various of beam angles by UV-resistant PC lens to meet the lighting design of different applications. Light up the airport or seaport in a clear and visually comfortable manner.






Product Detail

More Options

Technical Data

Model No.      TL-HM-HV2-400   TL-HM-HV3-600  TL-HM-HV4-800
Optoelectronic
Rated Power                   400W 600W 800W
System Efficacy(±5%) 150lm/W
Luminous Flux(±5%)
60,000lm 90,000lm 120,000lm
Color Temperature(CCT) 3000K / 4000K / 5000K / 5700K / 6500K
Color Rendering Index  Ra>70 / Ra>80(optional)
Beam Angle
30° / 45° / 60° / 90° / 60x40x120° / 80x140°
LED Type EMC 3030
 Electrical
Input Voltage
AC110-277V
Input Frequency
47-63Hz
Power Factor  ≥0.95
THD <20%
Surge Protection(SPD) 10kV / 20kV(optional)
Driver Brand Meanwell/Sosen
Dimmability 0-10V
Smart Control(optional) DALI/DMX 512
•  Mechanical
Product Size(mm)
672*430*304
728*430*304
Housing Material  Die cast  ADC12
Surface Finish Powder coated
Lens Material Anti-UV PC
 Environmental
Ingress Protection   IP66
Impact Protection IK08
Salt Spray Tested Yes
Ambient Temperature   -35 ~ 50℃
Storage Temperature  -45 ~ 60℃
Lifespan(L90B10@25℃)  50,000h



¦ Dimensions

sea port and airport LED fixture 2 modules

400W/600W

400W

sea port and airport LED fixture 4 modules

800W


  • Previous:
  • Next:

  • # Optional Feature Value or Description
    1 Custom Power 400W / 600W / 800W / 1200W / 1800W
    2 Higher Voltage 347V / 480V
    3 Dimmability 0-10V / DMX / DALI-2
    4 Sensors or Control Daylight Sensor, Remote Control
    5 Lamp Shield Anti-glare
    6 Laser Touch Light Positioning
