LED Post Top Lamp UP and Down Emitting- VERSATile

LED Post Top Lamp UP and Down Emitting- VERSATile Featured Image
  • LED Post Top Lamp UP and Down Emitting- VERSATile
  • LED Post Top Lamp UP and Down Emitting- VERSATile
  • LED Post Top Lamp UP and Down Emitting- VERSATile
  • LED Post Top Lamp UP and Down Emitting- VERSATile
  • LED Post Top Lamp UP and Down Emitting- VERSATile

Short Description:

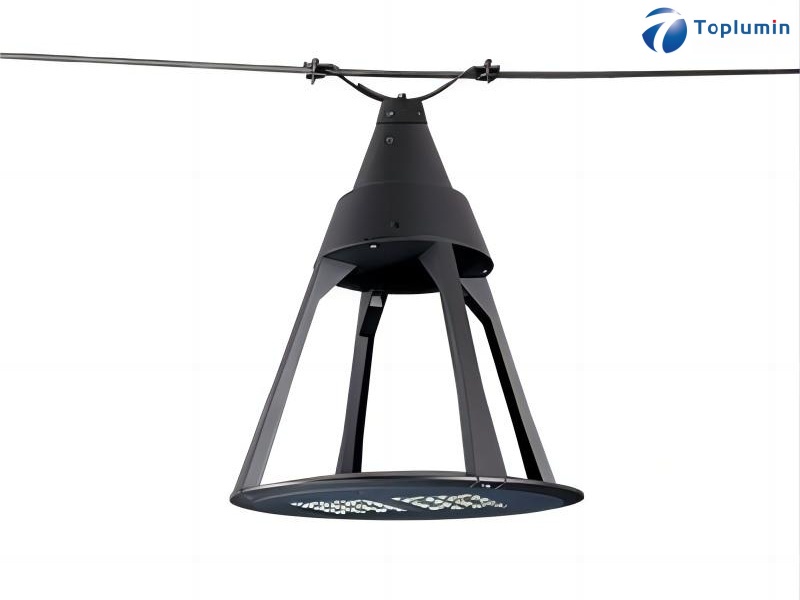

• UP & DOWN installation. The Toplumin fastening system can be installed in the UP position(post top or arm in supported position) or DOWN(suspended from arms or wire).

• The UP version is available with two or four arms, while the DOWN version has four arms as standard. The four-arm UP version can assume a more classic form with the fitting of the special cover.

• With cut-off light distribution, the replacement of old light bulbs with LED post top fixtures from Toplumin allows for elevated energy saving and a reduction of light pollution.

• Replaceable LED driver enables future upgrade, and smart lighting control by working with various of sensors and 1-10V and DALI dimmable driver.

• CRI≥80 and SDCM=4 is available upon request for higher color rendering effect and chromatic consistency.

Product Detail

More Options

¬ Technical Data

• Optoelectronic
Model No.  TL-PT-VT-75  TL-PT-VT-100  TL-PT-VT-120
Rated Power 75W 100W 120W
System Efficacy(±5%)  130lm/W
Luminous Flux(±5) 9,750lm 13,000lm 15,600lm
Color Temperature(CCT) 2200K/3000K/4000K/5000K/6000K
Color Rendering Index Ra>70 / Ra>80(opt.)
CHROMATIC CONSISTENCY(SDCM) ≤6 / ≤4(opt.)
Beam Angle P45º / 60º / 90º / Type II / Type III / Type IV
LED Type 3030(Lumileds)
• Electrical
Input Voltage AC90~305V
Frequency 50/60Hz
Power Factor  ≥0.95
THD <15%
Surge Protection(Built-in) 10kV
Driver Brand Meanwell
Dimmable(Opt.) 1-10V / DALI
• Mechanical
Housing Material Die-cast aluminum  ADC12
Surface Finish Powder coated
Lens Material UV-resistant Polycarbonate
Cover Material Tempered glass
Fixture Size(Ø*Hmm)
452*551
Export Carton Size(cm)  50.5*51.0*62.5
Net Weigh(Kg) 7.0
Gross Weight(Kg) 9.0
• Environmental
Ingress Protection   IP66
Impact Protection IK08
Ambient Temperature -30℃ ~ 50℃
Storage Temperature -40℃ ~ 60℃
Lifespan(L90B10@Ta25℃) 50,000h



¬ Dimensional Drawing

LED post top lamp dimensions 1
LED post top lamp dimensions_2

Unit: mm

¬ Photometry

LED garden post top lamp 45 degree beam angle

P45º

LED garden post top lamp 60 degree beam angle

60º

LED garden post top lamp 90 degree beam angle

90º

LED garden post top lamp Type II beam angle

Type II

LED garden post top lamp Type III degree beam angle

Type III

LED garden post top lamp Type IV degree beam angle

Type IV

¬ Installation

LED up and down post top garden lamp installation methods
LED post top garden lamp installation height
LED post garden light installation height

Unit: mm

  • Previous:
  • Next:
    • # Optional Feature Value or Description
    1 Custom Power 400W / 600W / 800W / 1200W / 1800W
    2 Higher Voltage 347V / 480V
    3 Dimmability 0-10V / DMX / DALI-2
    4 Sensors or Control Daylight Sensor, Remote Control
    5 Lamp Shield Anti-glare
    6 Laser Touch Light Positioning
