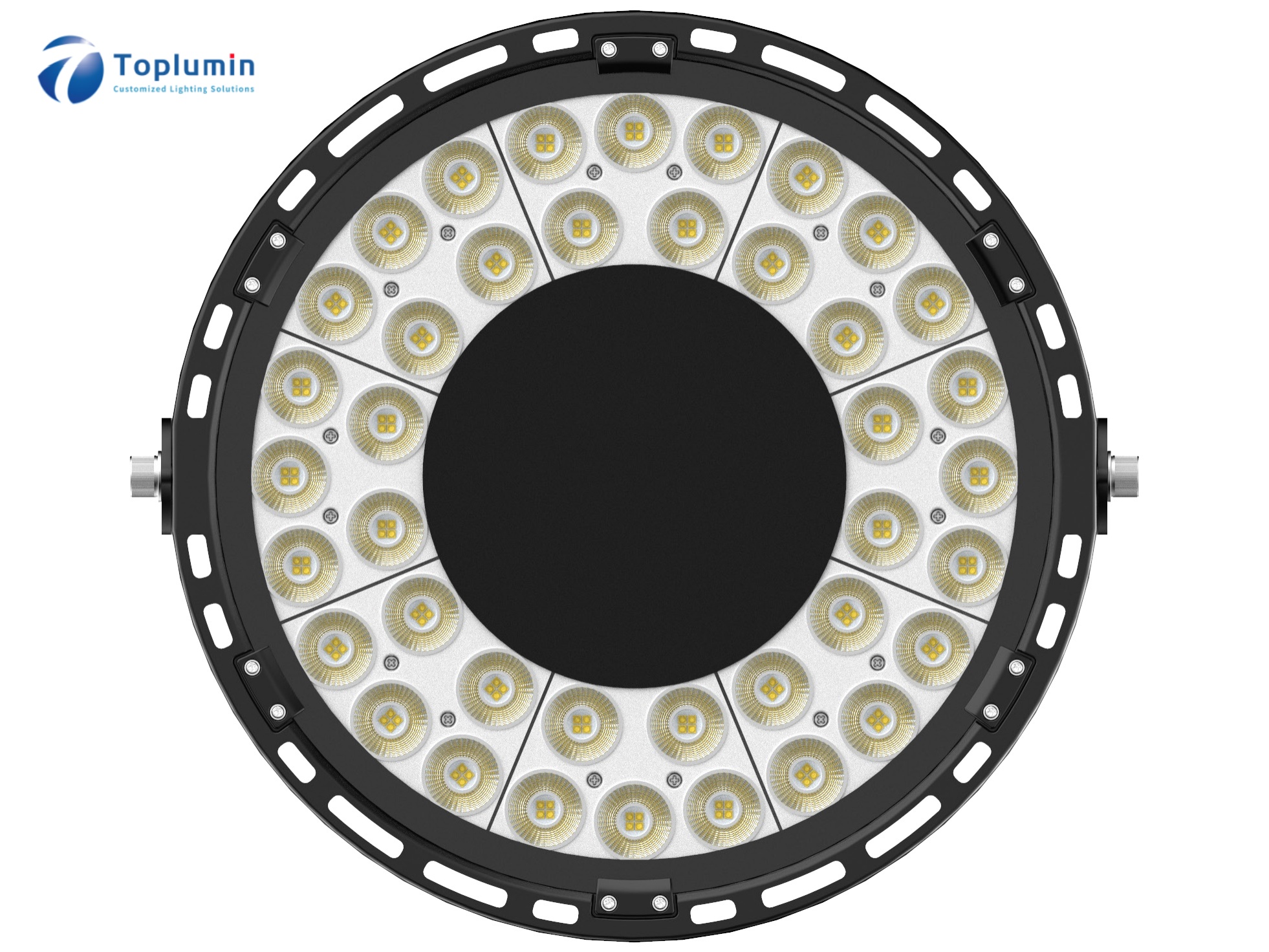

High Temperature UFO LED High Bay Light- HEATEase

High Temperature UFO LED High Bay Light- HEATEase Featured Image
  • High Temperature UFO LED High Bay Light- HEATEase
  • High Temperature UFO LED High Bay Light- HEATEase
  • High Temperature UFO LED High Bay Light- HEATEase

Short Description:

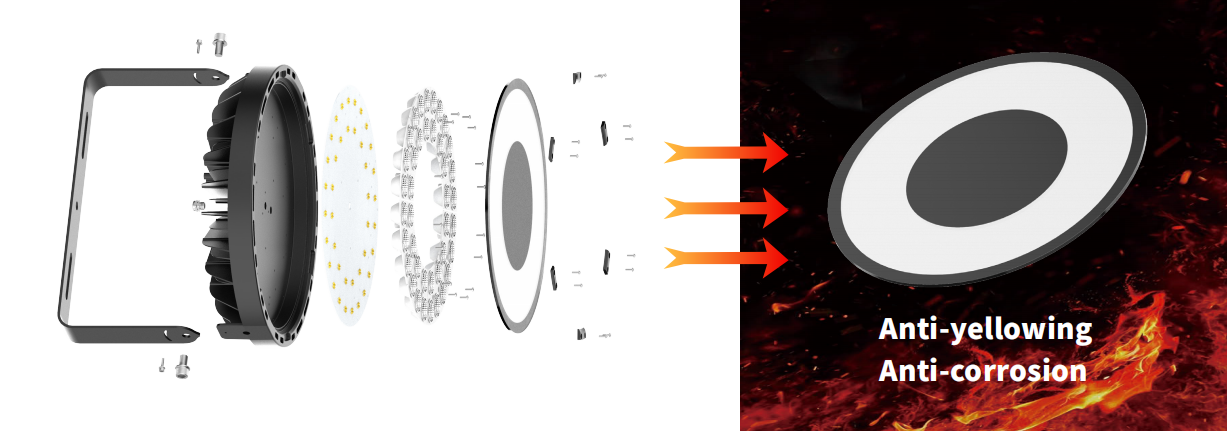

• Rugged UFO LED high bay with toughened glass cover to withstand high temperature industrial locations up to 65ºC.

• Vertically placed Philips high temperature LED driver to isolate it from lamp housing for better air flow and heat dissipation, reducing junction temperature(Tj) of LEDs to slow down lumen depreciation process and prolong life span of the LED fixture.

• Die-cast ADC12 aluminum housing with high thermal conductivity coating to dissipate heat efficiently.

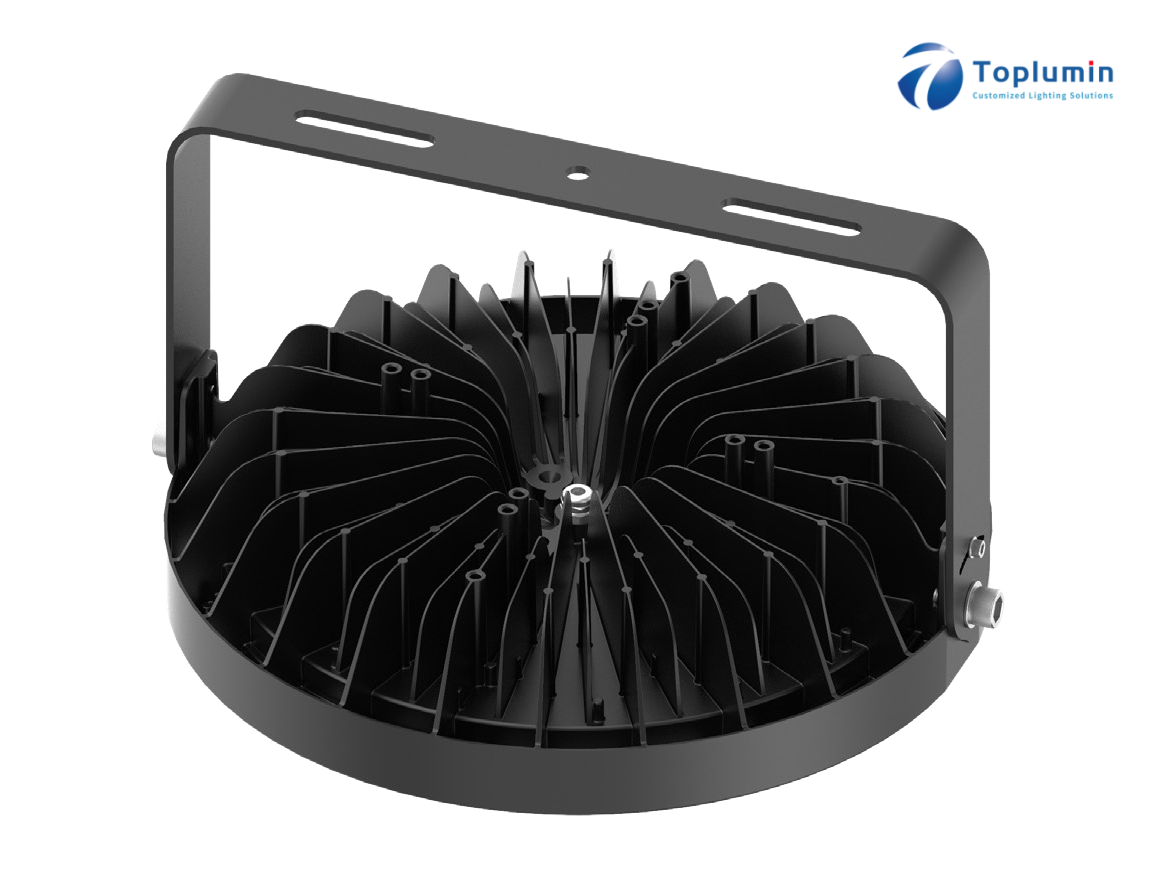

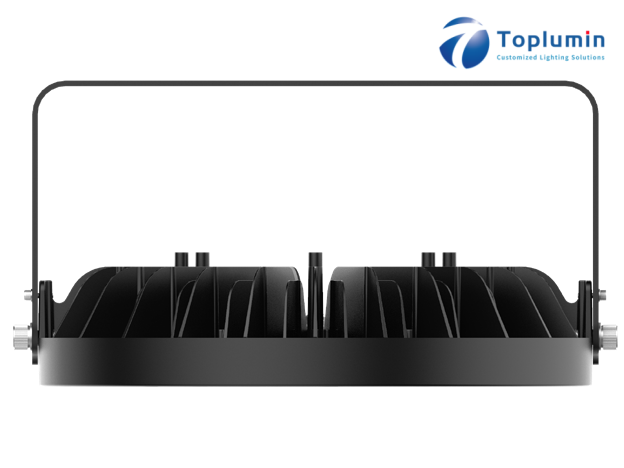

• Big cooling fins to transfer heat to the environment for exchange in order to operate stably in intensive high temperature areas.

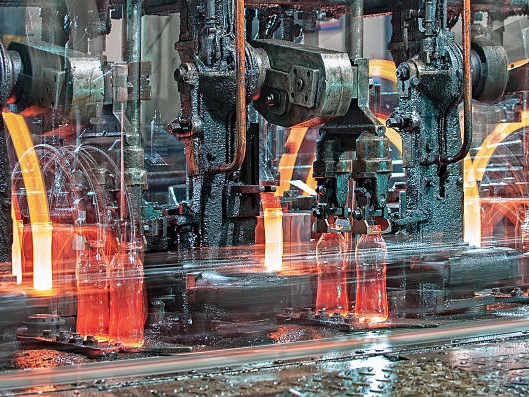

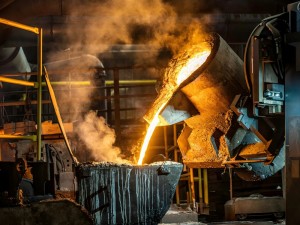

• Ideal for high temperature process industries like steel plant, glass processing, textile factory.

Product Detail

More Options

¬ Technical Data

ν Optoelectronic
Model No.  TL-RHB-HE-150  TL-RHB-HE-200
Rated Power 150W 200W
System Efficacy(±5%)  150lm/W
Luminous Flux(±5) 22,500lm 30,000lm
Color Temperature(CCT) 3000K/4000K/5000K/5700K/6500K
Color Rendering Index Ra>80
Beam Angle 120°
ν Electrical
Input Voltage AC100~277V
Frequency 50/60Hz
Power Factor  ≥0.95
THD <15%
Driver Brand Philips/Sosen
Dimmable(Opt.) 0/1-10V / DALI
ν Mechanical
Housing Material Die-cast aluminum  ADC12
Surface Finish Powder coated
Cover Material Tempered glass
Fixture Size(mm)
Ø280*H400
 Ø320*H400
ν Environmental
Ingress Protection   IP66
Impact Protection IK08
Ambient Temperature -40℃ ~ 65℃
Storage Temperature -50℃ ~ 70℃
Lifespan(L70B10@25℃) 50,000h



¬ Dimensions

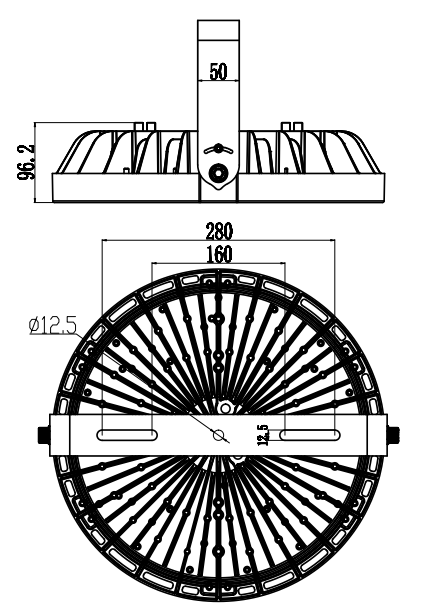

high temperature 150W dimensions drawing

150W

high temperature UFO LED high bay 200W dimensions

200W

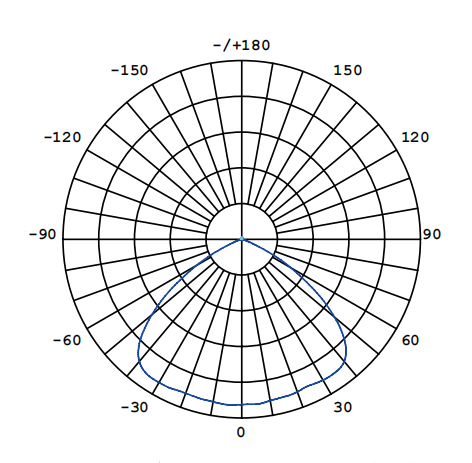

¬ Light Distribution Curve

glass cover UFO LED high bay light distribution

¬ Installation

high temperature UFO LED high bay installation steps

¬ Accessories

— Standard

UFO LED high bay metal ring

Hanging ring

Or

UFO LED high bay hanging hooks

          Hanging hook

+

UFO led high bay steel safety rope

Safety rope

— Optional

U surface mount bracket for UFO led high bay
LED high bay suspend chain

Surface mount bracket

 Suspending chain





  • Previous:
  • Next:
    • # Optional Feature Value or Description
    1 Custom Power 400W / 600W / 800W / 1200W / 1800W
    2 Higher Voltage 347V / 480V
    3 Dimmability 0-10V / DMX / DALI-2
    4 Sensors or Control Daylight Sensor, Remote Control
    5 Lamp Shield Anti-glare
    6 Laser Touch Light Positioning
